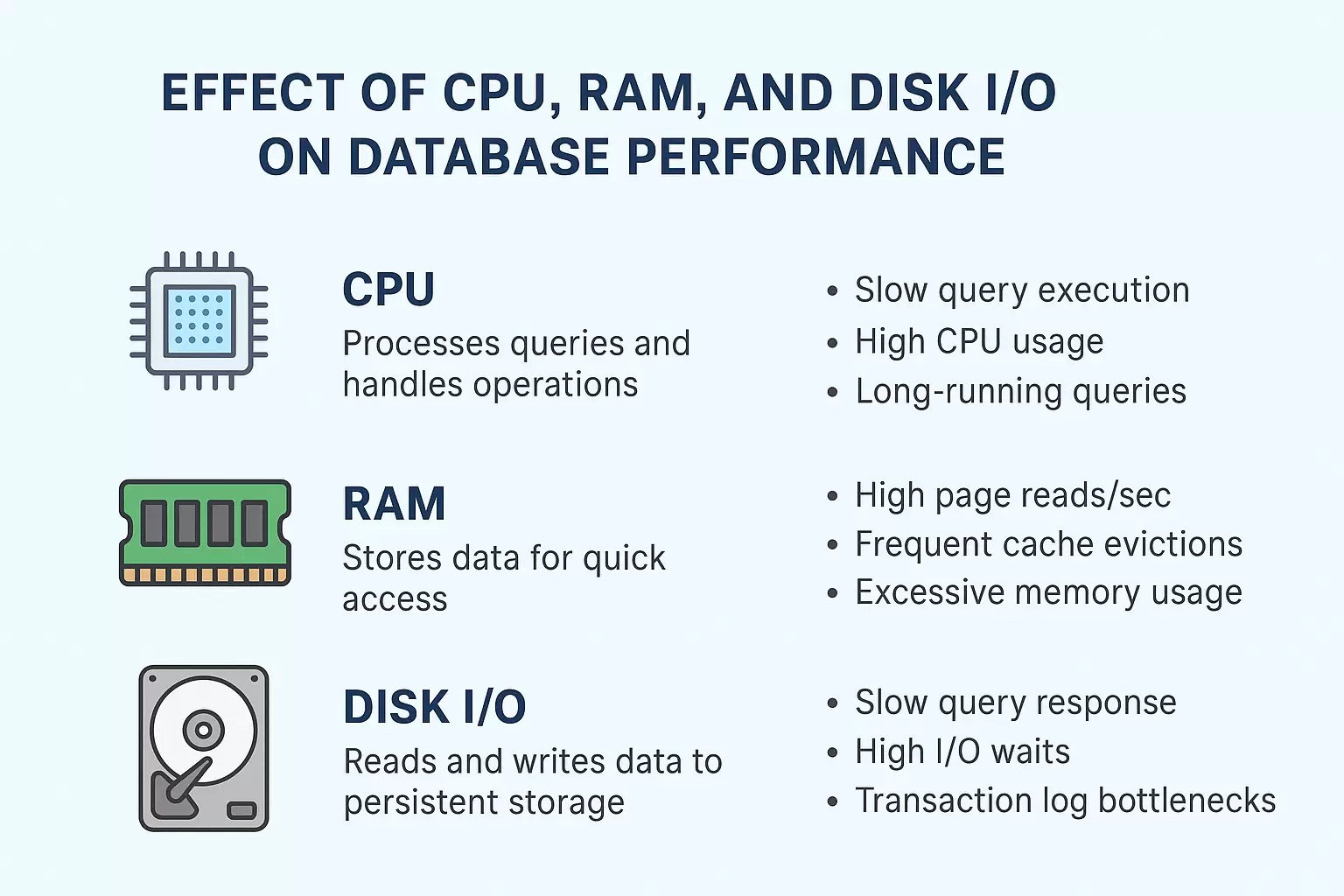

Effect of CPU, RAM, and Disk I/O on Database Performance

🔹 Effect of CPU, RAM, and Disk I/O on Database Performance

The performance of a database is heavily dependent on the three core hardware components of a server: CPU, RAM, and Disk I/O. Think of them as a team working together. If one member is slow, the entire team’s performance suffers.

1️⃣ CPU (Processor Power)

Role in DB: The CPU is the “brain” of the database server. It executes all the instructions for processing queries, indexing, joins, aggregations, sorting, compression, encryption, etc.
Effects of CPU on Performance:
- ✅ Fast CPUs → quicker query execution, parallel processing, better handling of complex calculations.
- ❌ CPU Bottlenecks → queries run slower, high context switching, long-running reports, blocking and deadlocks.
- Symptoms: High CPU usage (%Processor Time), slow queries, timeouts.
Optimizations:
- Rewrite queries, reduce functions in SELECT/JOINs.
- Add proper indexes (avoid full table scans).
- Use parallelism wisely but avoid excessive parallel queries.
Analogy: The Head Chef in a busy kitchen. The faster and more skilled the chef, the more dishes they can prepare at once.

2️⃣ RAM (Memory)

Role in DB: RAM is the server’s short-term memory or “workspace.” It’s significantly faster than disk storage and holds frequently accessed data and database pages. Memory stores data in buffer cache, execution plans, temp tables, sort/hash operations, and cached indexes.
Effects of RAM on Performance:
- ✅ More RAM → more data cached, fewer disk reads, faster query response.
- ❌ Low RAM → frequent page reads from disk (slow), higher I/O waits, queries spill to TempDB/disk.
- Symptoms: High page reads/sec, frequent cache evictions, excessive swapping/paging.
Optimizations:
- Allocate enough memory for buffer pool & query cache.
- Optimize queries to reduce memory spills (sorts, hash joins).
- Monitor Memory Grants in SQL Server (too low = spills, too high = wasted).
Analogy: The Prep Counter in the kitchen. The more counter space you have, the more ingredients and tools you can keep at hand without having to go back to the pantry.

3️⃣ Disk I/O (Storage Performance)

Role in DB: Disk I/O is the process of reading data from and writing data to the storage drive. This is the slowest of the three components. Disk I/O speed is a major bottleneck for most database systems. Slow storage, like a traditional Hard Disk Drive, can cause queries to wait for data. This occurs even if the CPU and RAM have plenty of capacity. Disk I/O handles reads/writes for tables, indexes, logs, backups, and temp data.
Effects of Disk I/O on Performance:
- ✅ Fast I/O (SSD, NVMe, Premium Disks) → quick read/write of large datasets, faster backups, efficient logging.
- ❌ Slow I/O (HDD, poor SAN/NAS setup) → long query times, blocking, transaction log bottlenecks.
- Symptoms: High latency (avg disk sec/read), slow log writes, TempDB contention.
Optimizations:
- Use SSD/NVMe storage.
- Separate data, logs, and TempDB onto different disks.
- Use striping/RAID for throughput.
- Compress backups, use partitioning to reduce I/O load.
Analogy: The Pantry and Delivery Truck. The faster the delivery truck (throughput) and the more hands available to grab ingredients (IOPS), the faster ingredients can get to the chef.

⚡ How They Work Together

CPU without enough RAM → CPU waits on I/O.
RAM without fast Disk I/O → memory helps but disk bottleneck still slows queries.
Fast Disk but weak CPU → system underutilized.

👉 In short:

CPU = Brain 🧠 (processing power)
RAM = Short-term Memory ⚡ (speedy access to working data)
Disk I/O = Storage & Retrieval 📂 (data persistence, slowest link)

✅ Best Practice: Balance CPU, RAM, and Disk I/O according to workload type:

OLTP (transactions) → need fast CPU, plenty of RAM, fast log writes.
OLAP (analytics/reporting) → need more RAM, CPU parallelism, and very fast disk throughput.

For more information about optimizing the SQL Server settings for better performance, please read the article How to Optimize SQL Server settings for better performance
