Introduction

One day, your manager walks into your office and says:

“We have 20+ new clients in the pipeline. All of these client databases are going to be hosted on our SQL Server infrastructure. So, what should be the configuration of these servers?”

It sounds like a simple infrastructure-sizing question.

It isn’t.

Your first instinct might be to ask:

• How many CPUs?
• How much RAM?
• How much storage?
• How many SQL Servers do we need?

But these questions come after understanding the workload.

Before recommending a server configuration, a DBA needs to understand:

• How many users will each application have?
• How many users will be active concurrently?
• What type of workload will run – OLTP, reporting, ETL or mixed?
• What is the expected transaction volume?
• When is the peak workload?
• How large are the databases?
• How quickly will they grow?
• What are the RPO and RTO requirements?
• Does every client have the same workload?
• Do some clients require higher availability or isolation?

The difficult part isn’t asking these questions.

The difficult part is:

How do you interpret the answers and turn them into a practical CPU, memory, storage and server configuration?

This article shows how to use those answers to decide the right CPU, memory, storage and server configuration.

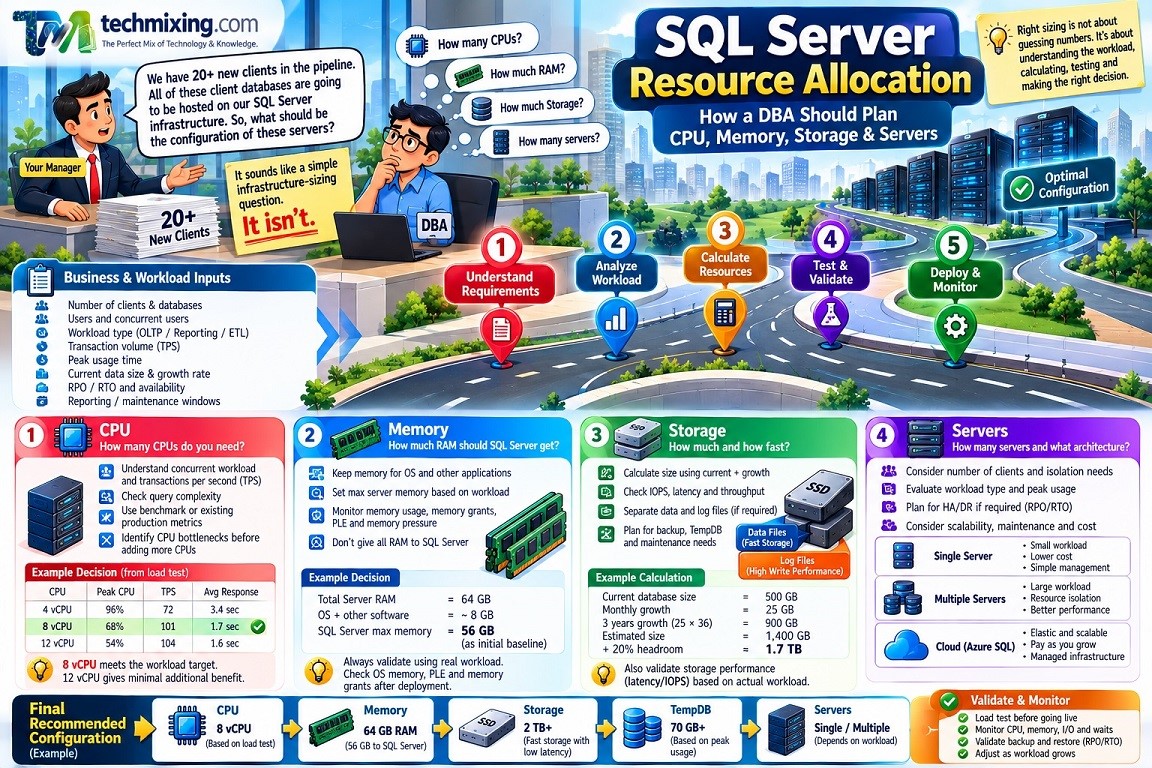

1. The Resource Allocation Process

A practical DBA approach is:

Business Requirements

↓

Workload Information

↓

Current/Baseline Measurements

↓

Resource Calculation

↓

Initial Configuration

↓

Load/Performance Testing

↓

Production Validation

The important word is initial.

Resource allocation is rarely a one-time mathematical exercise. The first configuration should be validated against real workload behavior.

2. Start With the Business Questions

Before discussing CPU or memory, ask:

Question	Why do we ask it?
How many users?	Helps understand workload/concurrency
How many concurrent users?	More useful than total user count
What type of workload?	OLTP, reporting, ETL, mixed
Peak usage time?	Determines peak resource requirements
Transactions per second?	Helps estimate workload intensity
Database size?	Determines storage requirement
Monthly growth?	Determines future capacity
RPO?	Determines backup/recovery design
RTO?	Influences recovery and infrastructure design
Availability requirement?	Determines HA/DR architecture
Reporting/ETL windows?	Identifies competing workloads

But don’t stop here.

The next step is to interpret the answers.

3. CPU Allocation – How Do I Decide 4, 8 or 16 CPUs?

This is one of the most common questions.

Suppose the application team says:

“We will have 500 users.”

That does not mean you can calculate:

500 users = 16 CPUs

There is no reliable universal formula like that.

What matters is concurrent workload.

Ask these additional questions

• How many users are active at the same time?
• How many requests/transactions occur per second?
• What is the peak TPS?
• Are queries simple or complex?
• Is there reporting?
• Is there ETL?
• Are there batch jobs?
• What is the expected response time?

Example

Suppose the application team provides:

• 500 registered users
• 80–100 concurrent users
• 50 transactions/sec normally
• 100 transactions/sec during peak
• OLTP workload
• Average query response target < 2 seconds

You still cannot say:

“Therefore we need 8 CPUs.”

You need a benchmark or a comparable production baseline.

Suppose a performance test produces:

CPU	Peak CPU	TPS	Avg Response
4 vCPU	96%	72	3.4 sec
8 vCPU	68%	101	1.7 sec
12 vCPU	54%	104	1.6 sec

Now we have evidence.

4 CPU: insufficient.

8 CPU: meets the workload target.

12 CPU: provides little additional throughput.

Decision

Start with 8 vCPU.

Why?

Because it satisfies the tested workload and response-time requirement without paying for resources that provide little additional benefit.

What if there is no benchmark?

Then use:

1. Existing production server metrics
2. Similar workload from another environment
3. Vendor/application sizing guidance
4. Load testing
5. Conservative initial sizing followed by monitoring

Don’t manufacture a CPU formula.

4. Don’t Increase CPU Before Finding the CPU Problem

Suppose an existing server has:

8 CPUs

and CPU is reaching:

95–100%

The immediate reaction might be:

“Add more CPUs.”

Stop.

First determine why.

Check:

• Top CPU-consuming queries
• Execution plans
• Query Store
• CPU-related waits
• Parallelism
• Recompilations
• Missing/inefficient indexes
• Statistics
• Application workload
• SQL Agent jobs
• Non-SQL processes

You may discover that one badly written query is responsible for the problem.

Fixing that query may be more effective than upgrading from 8 to 16 CPUs.

5. CPU Topology Also Matters

CPU allocation is not only about the number of CPUs.

You also need to understand:

• Physical cores
• Logical processors
• NUMA
• Virtual CPU allocation
• Hyper-threading/SMT
• VM CPU configuration

These affect SQL Server behavior and settings such as MAXDOP.

For example, don’t simply say:

“The server has 32 CPUs, so MAXDOP should be 32.”

MAXDOP recommendations depend on SQL Server version and CPU/NUMA topology. Microsoft provides version-specific guidance for this configuration. Microsoft Learn

So the decision becomes:

CPU count → topology → SQL Server version → workload → MAXDOP → testing

6. Memory Allocation – How Much RAM Should SQL Server Get?

Now suppose the customer says:

“The application needs 64 GB RAM.”

What does that actually mean?

You need to distinguish between:

Total server RAM

and

Memory available to SQL Server.

Suppose:

Server RAM = 64 GB

The server also needs memory for:

• Windows/Linux
• Monitoring agents
• Antivirus/security software
• Backup software
• Other applications
• Drivers and OS services

Therefore, don’t automatically configure:

max server memory = 64 GB

SQL Server’s max server memory should leave appropriate memory for the operating system and other requirements. Microsoft recommends configuring the option to prevent SQL Server from consuming memory needed by the OS and other applications. Microsoft Learn

Example

Suppose you have:

64 GB physical RAM

and determine that approximately:

8 GB should remain available for the OS and other software.

An initial SQL Server memory target could therefore be around:

56 GB

But this is only a starting point.

Then monitor:

• Available OS memory
• SQL Server memory usage
• Memory grants
• Page Life Expectancy
• Memory pressure
• Query performance

If the workload demonstrates pressure, investigate why before simply adding RAM.

7. How Do You Decide Whether More Memory Is Needed?

Suppose:

Server RAM = 64 GB

SQL Server max memory = 56 GB

But users complain that queries are slow.

Don’t conclude:

“We need 128 GB.”

Look for evidence.

Check for

OS memory pressure

If the OS is running low on memory, check whether SQL Server is using too much memory or the server needs more RAM.

Memory Grants Pending

If queries are waiting for memory, check whether SQL Server has enough memory and which queries are asking for too much.

Large memory grants

A query requesting excessive memory may have:

• Bad cardinality estimates
• Large sorts
• Hash operations
• Incorrect statistics
• Poor query design

Increasing RAM may hide the real problem.

Decision example

Suppose:

• SQL Server memory is high
• OS still has sufficient memory
• No significant memory pressure
• One query requests 20 GB
• Execution plan shows a huge hash operation
• Estimated rows = 10,000
• Actual rows = 20 million

The first action should probably be:

Investigate the query/cardinality problem

—not:

Buy more RAM.

This is an important DBA mindset.

8. Memory Grant – How Do We Interpret It?

Suppose a query has:

Requested memory = 8 GB

Granted memory = 8 GB

Used memory = 1 GB

That doesn’t automatically mean the server needs more memory.

It could indicate that the optimizer significantly overestimated the memory requirement.

On the other hand:

Requested = 2 GB

Granted = 2 GB

Query spills to TempDB

could indicate insufficient execution memory or incorrect estimates.

Therefore:

Memory grant analysis must be performed together with the execution plan and estimated vs actual rows.

9. Storage Allocation – Start With Capacity AND Performance

Storage planning has two separate questions:

Question 1

How much storage do we need?

Question 2

How fast must that storage be?

A 2 TB slow disk and a 2 TB high-performance storage system are very different resources.

10. How to Calculate Storage Capacity

Suppose:

Current database = 500 GB

Historical growth:

25 GB/month

Expected growth:

30 GB/month

Planning period:

3 years

Future growth:

30 × 36 = 1,080 GB

Estimated database size:

500 + 1,080 = 1,580 GB

Now add:

• Free-space headroom
• Index growth
• Maintenance requirements
• Temporary requirements
• Other databases
• Operational safety margin

You might decide that approximately:

2 TB+ usable capacity

is appropriate.

The important point is that we calculated it from growth, not simply from today’s database size.

11. Data File Growth – Don’t Use Today’s Size as the Final Size

Suppose a database is currently:

500 GB

but grows:

30 GB/month

A 500 GB disk allocation is obviously insufficient for a long-term production design.

Instead:

Current size + projected growth + operational headroom

should drive the capacity decision.

Monitor historical growth using database/file metrics.

Example:

SELECT
    name,
    size * 8.0 / 1024 AS SizeMB,
    growth,
    is_percent_growth
FROM sys.database_files;

Avoid frequent tiny autogrowth events.

12. Storage Performance – How Do You Decide?

Suppose two storage options are available:

Storage A

• 2 TB
• 20 ms average latency

Storage B

• 2 TB
• 3 ms average latency

Capacity is identical.

But the workload may behave very differently.

For an I/O-intensive SQL Server workload, Storage B may be a much better choice.

Therefore collect:

• Read latency
• Write latency
• IOPS
• Throughput
• Queue length
• Read/write ratio

Don’t ask only:

“Is it SSD?”

Ask:

“Does this storage meet the workload’s I/O requirements?”

13. Transaction Log Storage Is Different

The transaction log has a different I/O pattern from database data files.

The log is heavily dependent on sequential write performance and transaction activity.

Suppose:

• High transaction volume
• High commit rate
• Log flush latency is high

You may have a log-storage bottleneck.

Moving the log to faster storage may provide more benefit than adding CPU.

This is why resource allocation must follow the bottleneck.

14. TempDB – How Do We Decide the Size?

Don’t use:

“TempDB should be 10% of the database.”

There is no universal percentage.

TempDB requirements depend on:

• Queries
• Sorts
• Hash operations
• Temporary tables
• Version store
• Index maintenance
• ETL
• Concurrent workload

Microsoft recommends reproducing representative workload, monitoring TempDB usage and using observed maximum usage to plan capacity. Microsoft Learn

Example

Testing shows:

Normal TempDB usage = 30 GB

Peak workload = 55 GB

Index maintenance peak = 70 GB

Then a production configuration should provide sufficient headroom above that observed peak.

The answer isn’t:

“TempDB = 10% of database.”

The answer is:

“Our workload demonstrates that TempDB requires approximately X GB plus appropriate headroom.”

15. TempDB File Count

For current SQL Server guidance, Microsoft recommends a starting point based on logical processors:

• Up to 8 logical processors → start with the same number of TempDB data files
• More than 8 → start with 8
• If allocation contention remains, consider increasing in groups of four while monitoring the result. Microsoft Learn

For example:

4 logical processors

→ Start with 4 TempDB data files.

8 logical processors

→ Start with 8.

16 logical processors

→ Start with 8.

If contention continues:

8 → 12 → 16

while monitoring.

Don’t create 16 files merely because the server has 16 CPUs.

16. Server Sizing – How Do You Choose the Server?

Now combine everything.

Suppose your workload analysis produces:

CPU

8 vCPU required during peak testing.

Memory

56 GB SQL Server memory required.

Database

1.5 TB currently/projected.

TempDB

70 GB peak observed.

Storage

Low-latency storage required.

RPO

15 minutes.

RTO

1 hour.

Now you can start designing the server.

For example:

Server

• 8–12 vCPU
• 64–96 GB RAM
• High-performance storage
• Adequate data capacity
• Separate/appropriately prioritized log storage
• TempDB with sufficient capacity
• Backup storage
• Monitoring

Notice what happened.

We didn’t start with:

“Let’s buy a 16 CPU / 128 GB server.”

We started with the workload requirements and worked toward the infrastructure.

17. How to Read the Customer’s Answers

When someone gives you an answer, don’t just record it.

Interpret it.

Customer says	DBA should think
“500 users”	How many are concurrent?
“24×7 application”	What is the peak workload window?
“Database is 500 GB”	What is monthly growth?
“It grows 30 GB/month”	Calculate future capacity
“Queries must finish in 2 sec”	This requires performance testing
“We need 99.99% availability”	Single server may not be sufficient
“We can lose 15 minutes of data”	Design RPO around ≤15 minutes
“System must recover in 1 hour”	Validate RTO through restore/DR testing
“Reports run at midnight”	Check resource contention with maintenance
“We have 64 GB RAM”	Determine OS + SQL Server memory requirements
“CPU reaches 90%”	Find what consumes CPU before adding CPU
“Disk has 2 TB”	Capacity alone isn’t enough; check latency/IOPS
“TempDB is 100 GB”	Ask whether that is measured requirement or arbitrary sizing

This is the DBA interpretation layer.

18. A Practical Resource Allocation Example

Let’s put everything together.

Requirement

An organization is launching an OLTP application.

The customer provides:

• 1,000 registered users
• 150 concurrent users
• 80 TPS normal
• 150 TPS peak
• Current database: 400 GB
• Expected growth: 25 GB/month
• RPO: 15 minutes
• RTO: 1 hour
• 24×7 application
• Reporting during business hours

Step 1 — CPU

Load testing:

CPU	Peak CPU	TPS	Response
4	95%	105	3.1 sec
8	72%	154	1.8 sec
12	59%	160	1.7 sec

Decision: 8 vCPU

Why?

It meets the tested peak workload and response target.

Step 2 – Memory

Server has:

64 GB RAM

Testing shows the workload performs well with approximately:

50–56 GB available to SQL Server

Reserve memory for OS and other applications.

Decision: configure an appropriate max server memory value rather than giving SQL Server all 64 GB.

Step 3 — Storage

Current:

400 GB

Growth:

25 GB/month

Three-year projected growth:

25 × 36 = 900 GB

Projected database:

400 + 900 = 1,300 GB

Add operational headroom.

Decision: plan for >1.3 TB usable database capacity, with additional consideration for backups, TempDB and other databases.

Step 4 – TempDB

Testing shows:

Peak TempDB usage = 60 GB

Plan sufficient capacity above observed peak.

Configure the appropriate number of equally sized TempDB data files according to SQL Server guidance and actual contention.

Step 5 – Backup

RPO:

15 minutes

Therefore the backup strategy must be capable of recovering to within the required 15-minute data-loss window.

Step 6 – Recovery

RTO:

1 hour

Don’t simply document:

“Restore should take less than one hour.”

Actually test it.

Backup → Restore → Validate → Measure

If the restore takes 2 hours, the architecture does not meet the requirement.

19. The Final Decision Matrix

Resource	Input	How to interpret	Decision
CPU	Concurrent workload + TPS + benchmark	Does CPU meet peak workload without excessive utilization?	Select CPU based on tested workload
Memory	Working set + OS needs + query grants	Is there memory pressure?	Set SQL memory with OS headroom
Data Storage	Current size + growth	How much capacity is needed over planning period?	Current + projected growth + headroom
Storage Performance	IOPS + latency	Can storage satisfy workload I/O?	Select storage based on measured workload
Log Storage	Write workload + latency	Are log flushes becoming a bottleneck?	Prioritize low-latency storage
TempDB	Peak usage + features	How much TempDB does workload actually consume?	Size from observed peak + headroom
TempDB Files	CPU topology + contention	Is allocation contention occurring?	Start with Microsoft guidance, then validate
Backup	RPO	How much data can business lose?	Design backup frequency accordingly
Recovery	RTO	How quickly must service return?	Test restore/DR time
Server	All above	Can the complete architecture meet requirements?	Choose server based on workload

20. The Golden Rule of Resource Allocation

A DBA should never say:

“8 CPUs is best practice.”

or:

“128 GB RAM is enough.”

without context.

Instead say:

“Based on the workload, benchmark results, growth projections and business requirements, this configuration is our recommended starting point.”

Then validate it.

The complete thought process should be:

Ask → Understand → Measure → Calculate → Configure → Test → Monitor → Adjust

That is resource allocation.

Not simply selecting a bigger server.

Version & Permission Notes

The exact configuration recommendations can depend on the SQL Server version, edition, operating system, virtualization platform and CPU topology.

For example, MAXDOP guidance is version- and topology-dependent, and SQL Server 2022 introduced Degree of Parallelism Feedback. Microsoft Learn

TempDB behavior and capabilities also vary by version. SQL Server 2019 introduced several TempDB scalability improvements, SQL Server 2022 added further allocation improvements, and SQL Server 2025 introduces additional TempDB capabilities such as TempDB space resource governance. Microsoft Learn

Before changing a production configuration, confirm:

• SQL Server version and edition
• CPU/NUMA topology
• Current configuration
• Workload characteristics
• Required permissions
• Change-management approval
• Rollback plan

For configuration changes, the executing account may need elevated server-level permissions. If you don’t have those permissions, don’t work around the security boundary. Document what you need, why you need it, and involve the DBA/infrastructure/security team.
